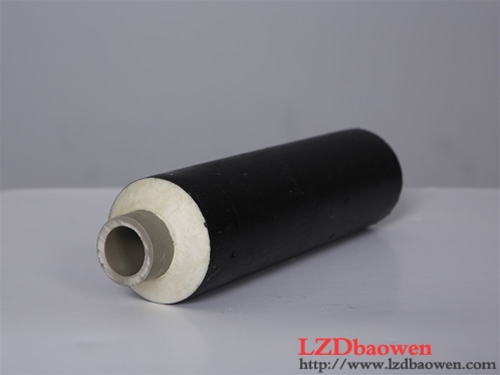

Name：PEInsulation pipe for water supply
Details
LZD baowen PPR pipe insulation specification sheet
| Pressure Level | Insulation specifications | PPR diameter (Thickness mm) | PVC pipe diameter (Thickness mm) | Insulation Thickness (mm) | Length (M / bar) |
| 2.0Mpa | 20*40 | Φ20×3.2 | Φ40×1.3 | 10 | 4m / Article |
| 20*50 | Φ20×3.2 | Φ50×1.3 | 15 | ||
| 25*50 | Φ25×3.5 | Φ50×1.3 | 12.5 | ||
| 25*63 | Φ25×3.5 | Φ63×1.3 | 19 | ||
| 32*50 | Φ32×4.4 | Φ50×1.3 | 9 | ||
| 32*63 | Φ32×4.4 | Φ63×1.3 | 15.5 | ||
| 32*75 | Φ32×4.4 | Φ75×1.3 | 21.5 | ||
| 40*75 | Φ40×5.5 | Φ75×1.3 | 17.5 | ||
| 40*90 | Φ40×5.5 | Φ90×1.3 | 25 | ||
| 50*75 | Φ50×6.9 | Φ75×1.3 | 12.5 | ||
| 50*90 | Φ50×6.9 | Φ90×2.3 | 20 | ||
| 50*110 | Φ50×6.9 | Φ110×2.3 | 25 | ||
| 63*90 | Φ63×8.6 | Φ90×2.3 | 13.5 | ||
| 63*110 | Φ63×8.6 | Φ110×2.3 | 23.5 | ||
| 75*110 | Φ75×10.1 | Φ110×2.3 | 17.5 | ||
| 75*160 | Φ75×10.1 | Φ160×3.0 | 42.5 | ||
| 90*160 | Φ90×12.3 | Φ160×3.0 | 35 | ||
| 110*160 | Φ110×15.1 | Φ160×3.0 | 25 | ||
| 160*200 | Φ160×18.2 | Φ200×3.0 | 20 |
|
